Layers

Layers allow you to organize elements of your project by assigning objects to specific layers.
This helps control visibility and styling of multiple elements more efficiently.

Note: Layers do not affect project metrics — they are used for visibility and organization only.

Managing Layers​
  • Add a Layer – Click ‘Add’ to create a new layer.
  • Hide/Unhide a Layer – Click the eye icon to toggle layer visibility.
  • Rename a Layer – Click on the layer name to edit it.
  • Color & Opacity – Assign a colour and set a transparency level. To enable colour display, check the ‘Use Colour’ checkbox. The selected colour will be applied to the layer’s elements in the model.
  • Remove a Layer – Click the trash bin icon to delete a layer. Elements assigned to the removed layer will be transferred to the ‘Default’ layer.

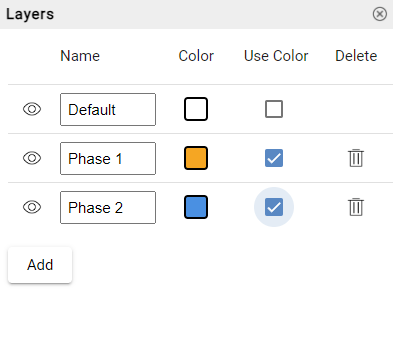

Planary Version 5.0 - Layers
Assign an Element to a Layer

Select the element, then go to the Properties panel. Under the ‘Other’ section, choose the desired layer from the drop-down menu.

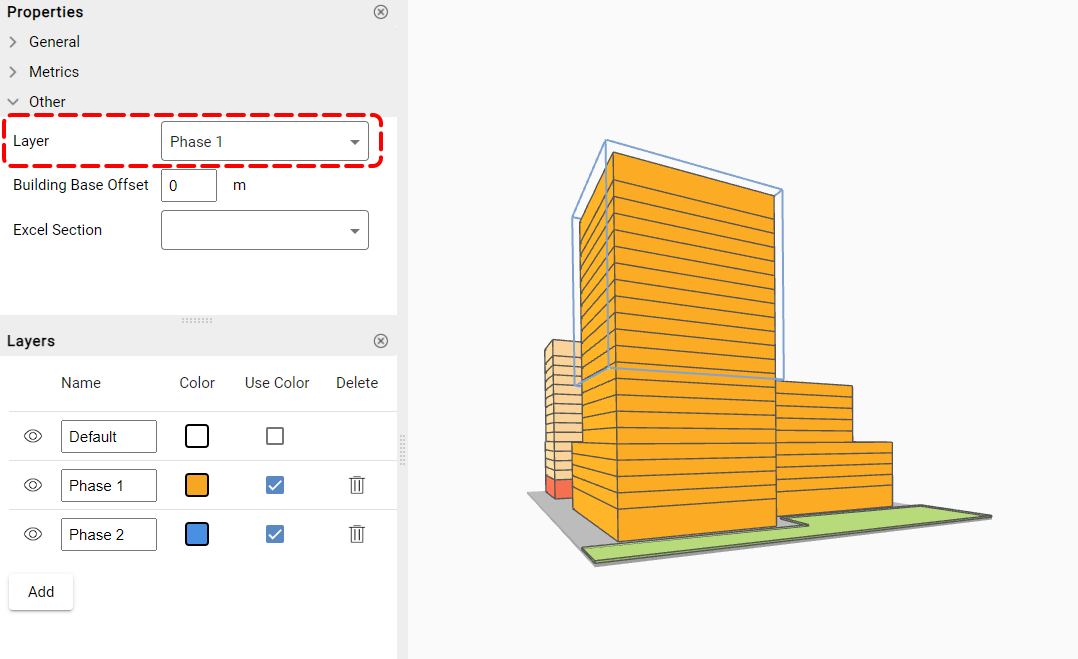

Planary Version 5.0 -Assign to Layer
