Sun Exposure
What is Sun-Hour Exposure Analysis?
Sun-hour exposure analysis is a critical assessment tool used to measure the amount of direct sunlight and help optimize the design to ensure natural light and the comfort and well-being of occupants. This tool is essential for proposed developments, open spaces, landscapes, and gardening.
Set SketchUp for Sun Exposure Analysis
1. Set up the desired camera position (Shadow Colour supports any camera position).
Set the Style for 3D/Isometric Views:
For the most accurate sun analysis results on vertical elements in 3D or isometric views (not top view), switch the style mode to Hidden Line.

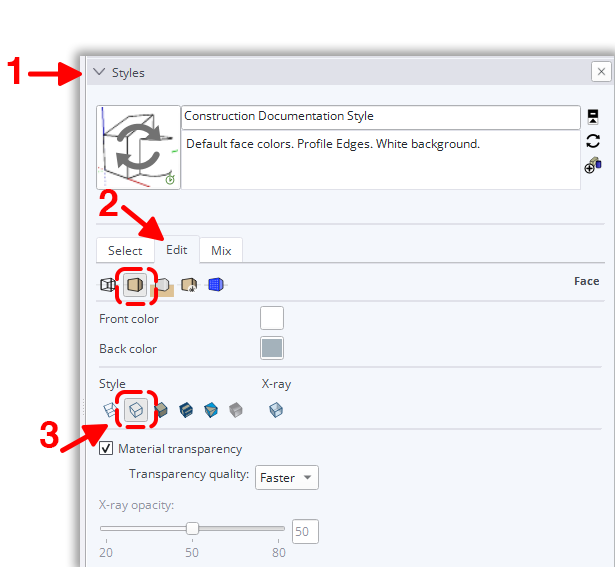

To change the style mode:
- Go to Style
- Open the Edit tab
- Under Face Settings, select Display in Hidden Line mode
2. Set the geo-location of the project
Windows → Model Info → Geo-Location
We recommend saving the view as a new scene:
- View → Animation → Add Scene
Conduct Sun Exposure Analysis
1. Click on the ‘Sun Exposure’ tab to switch to the sun exposure analysis mode.
2. Select a date for the analysis.
3. Select the time range.
4. Select time intervals. – 2 Hours, Hour, 30 Minutes, 15 Minutes.
5. On the time-increments bar you may:
- Adjust the time increments by dragging the hour marks below the bar.
- Add increments by clicking below the bar.
- Remove increments by clicking the garbage bin icon.
- Assign colours for time increments by clicking the coloured section.
5. Click ‘Preview Image’ to get a preview of how your sun exposure analysis will look like.
Sun Analysis for a Single Time Frame (Available from version 2.4)
To preview a single time frame, enter the same hour in both the From and To fields in the time range.
Shadow Colour will display the sun exposure for that specific hour using the selected colour.
Short walkthrough video for sun-exposure:
Sun Hours - Area Calculation
Shadow Colour allows you to calculate the sun hours area within selected regions.
To generate a sun hour area calculation, please ensure the following:
- The view is Top and orthographic/parallel projection.
- The site is fully contained within the view.
1. Click ‘Region’ and select a property line from the Revit view.
2. You can rename the region under ‘Name’.
3. Under ‘Actions’ you can delete or disable the selected region.
4. Click on ‘Preview Image’ and the area calculation will be displayed alongside the preview image.
- Please note that generating the preview image may take some time when calculating areas.
- You may deactivate the area calculation from the settings.
